NRB Industrial Bearings caged needle roller bearings are known for high load-carrying capacity in compact bearing arrangements. These needle bearings use an outer ring made from through-hardened bearing steel, while the cage guides the needles and retains them securely within the outer ring for stable performance. In many applications, these needle roller bearings can be used without an inner ring—provided the shaft journal is suitably hardened and ground; to achieve the full load capacity, the shaft raceway should typically have a hardness of 58–64 HRC with the correct surface finish.
The basic construction of these needle roller bearings includes:

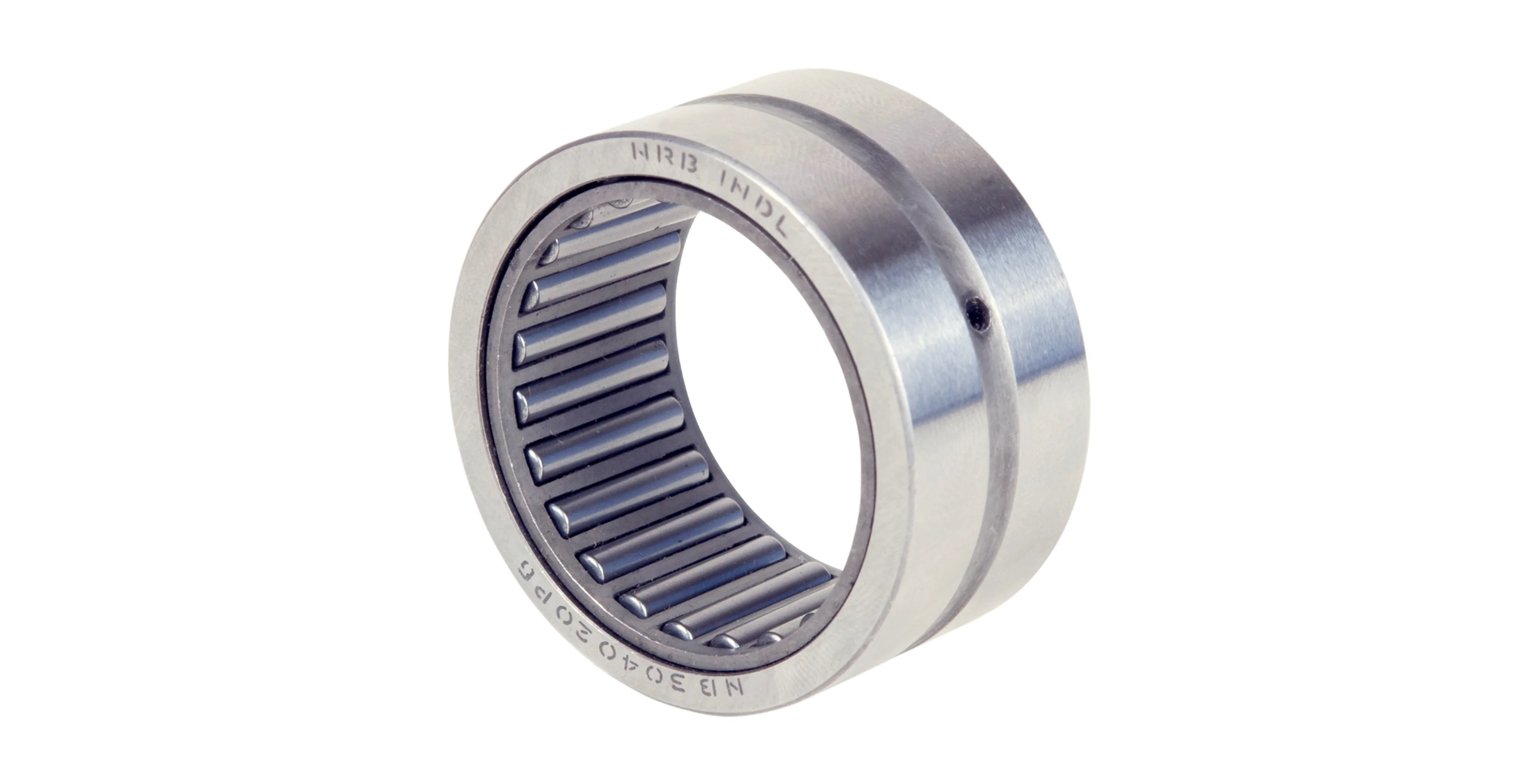

NRB Industrial Bearings needle roller bearings with integral flanges feature a one-piece, channel-shaped outer ring made from bearing-quality steel and heat-treated for maximum load rating. The integral end flanges provide the axial location for the needle rollers, and the bores of these end flanges act as piloting surfaces for the cages, supporting consistent needle guidance. A steel cage provides inward retention of the needle rollers, ensuring roller stability and helping minimize friction between the cage and needles. For lubrication support, the outer ring is equipped with a lubricating groove and lubrication hole for convenient relubrication (note: smaller sizes may not include a lubrication hole).
NRB Industrial Bearings offers multiple cage options to match operating conditions such as speed, lubrication frequency, and duty cycle. Cage selection influences needle guidance, friction behavior, and long-term stability in compact radial bearing applications.
Needle roller bearings with a welded steel cage are designed for dependable roller retention and stable operation in common industrial conditions. This option is preferred where robust construction and consistent performance are required.
Needle roller bearings with a machined steel cage offer higher structural strength and enhanced stability for demanding loads and continuous-duty applications. Suitable when the application requires extra cage rigidity and long service life.
Needle roller bearings with a polyamide cage support smooth running and efficient performance in many general industrial applications. This option is typically selected where stable needle guidance and consistent rotation are required.
Choose welded steel for reliable general-duty performance, machined steel for tougher operating conditions and higher durability needs, and polyamide for smooth running where operating conditions allow. Final selection should match load, speed, lubrication, and service interval requirements.
Used in compact gearbox designs where high radial load capacity is needed within limited space. Helps deliver stable performance for continuous-duty transmission systems.
Suitable for mechanisms requiring smooth movement, compact fitment, and reliable operation over repeated cycles. Supports consistent motion and durability in switching assemblies.
Applied in switchgear mechanisms where dependable performance and controlled movement are critical. Helps maintain operational stability in industrial electrical equipment.
